SYNC All-in-one Residential
Energy Storage System (EU Standard)

100% Free Power

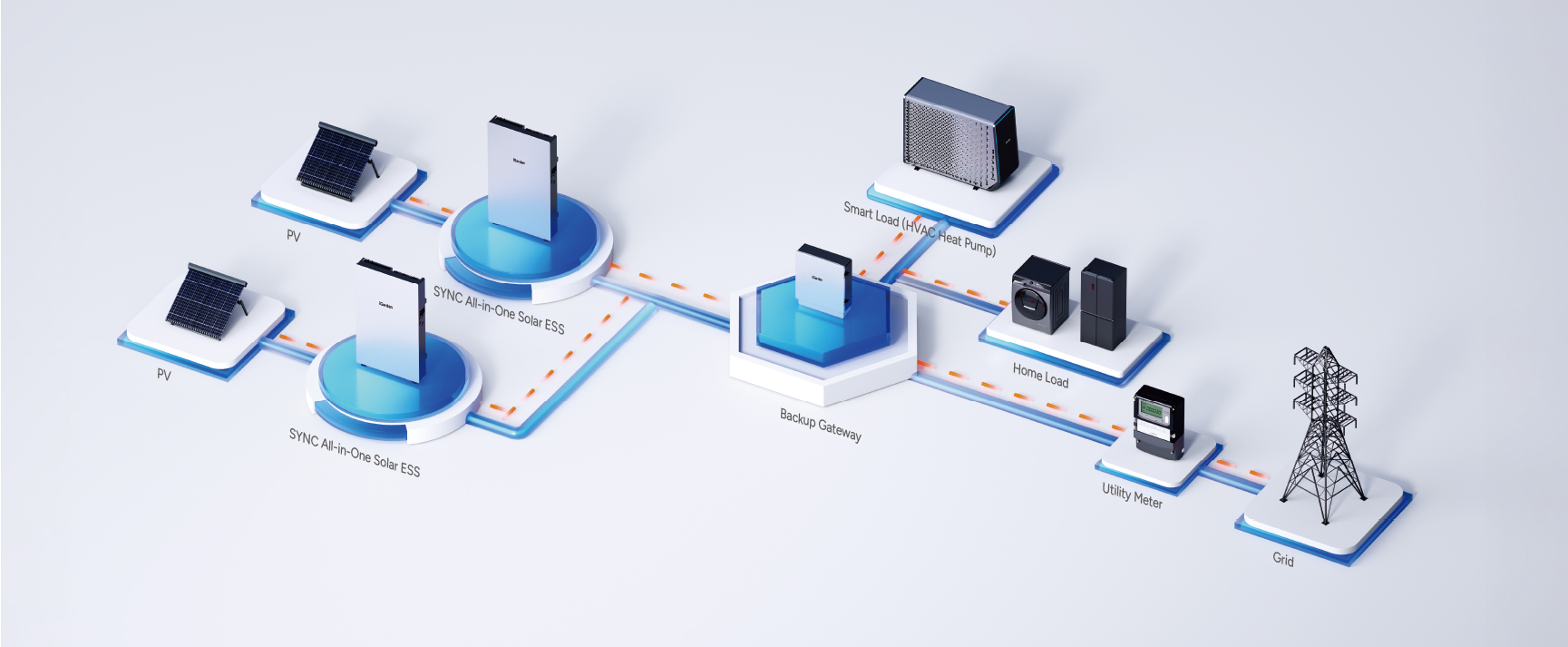

Smartly link your iGarden HVAC heat pump, pool heat pump, and entire iGarden ecosystem to maximize free energy.

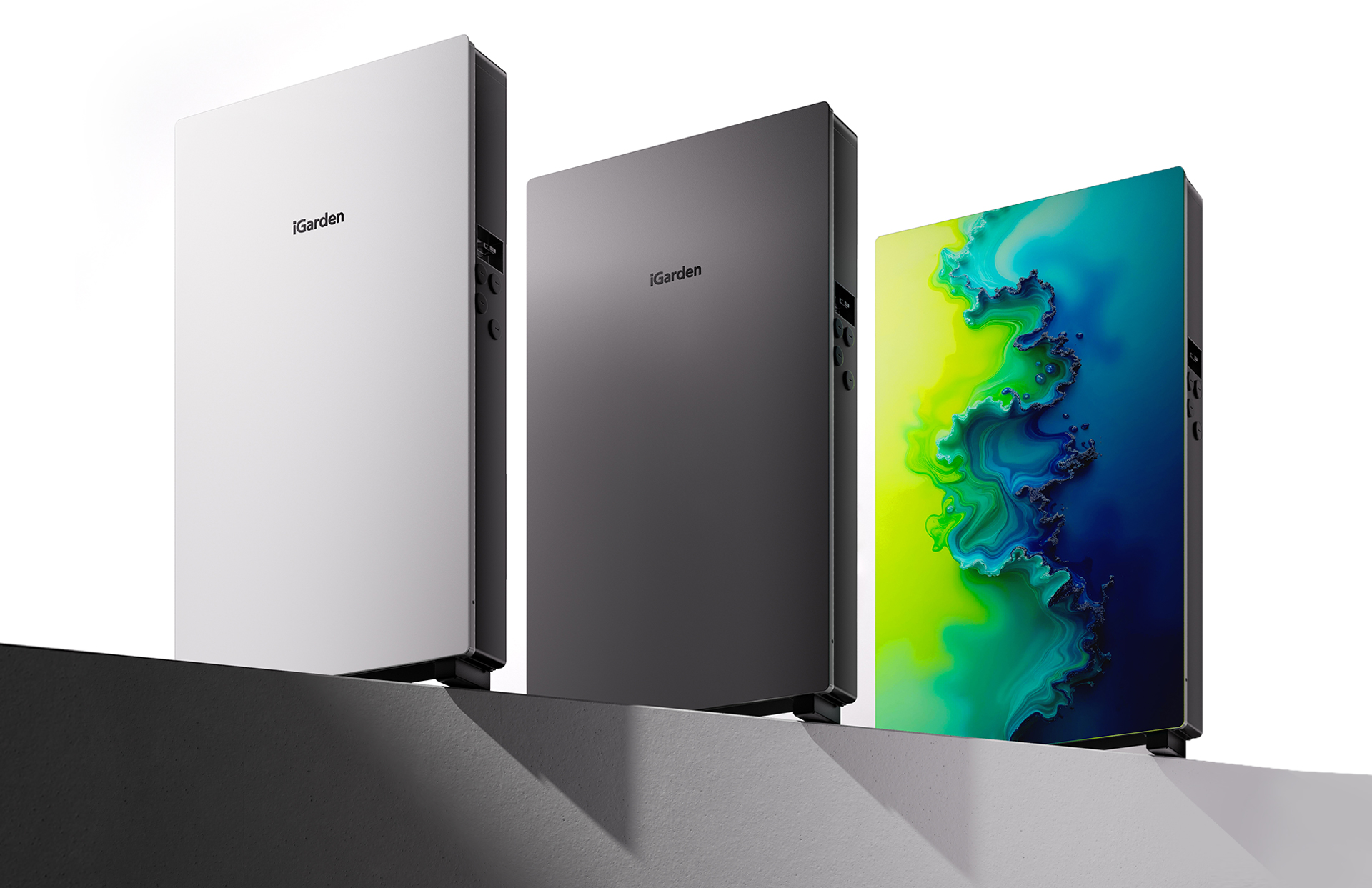

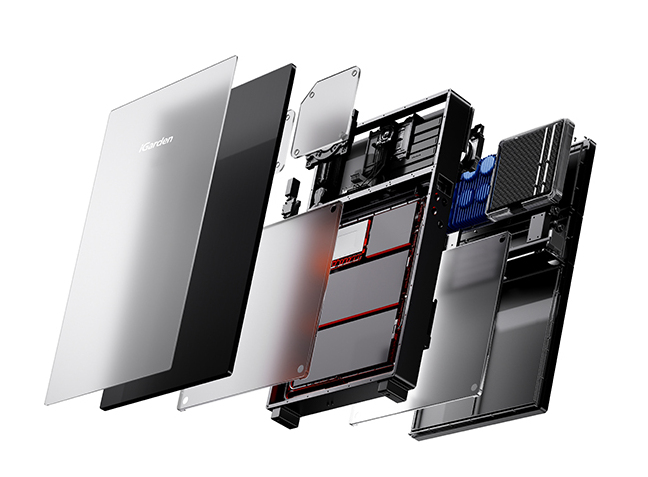

Ultra Thin Panel Design

Customized front panel. Experience a new benchmark
for space-saving, All-in-One Solar Storage.

-20℃ ~ 50℃ Operation

The intelligent temperature regulation system allows the device to operate reliably in temperature ranges from -20℃ to 50℃ without concern for extreme weather conditions.

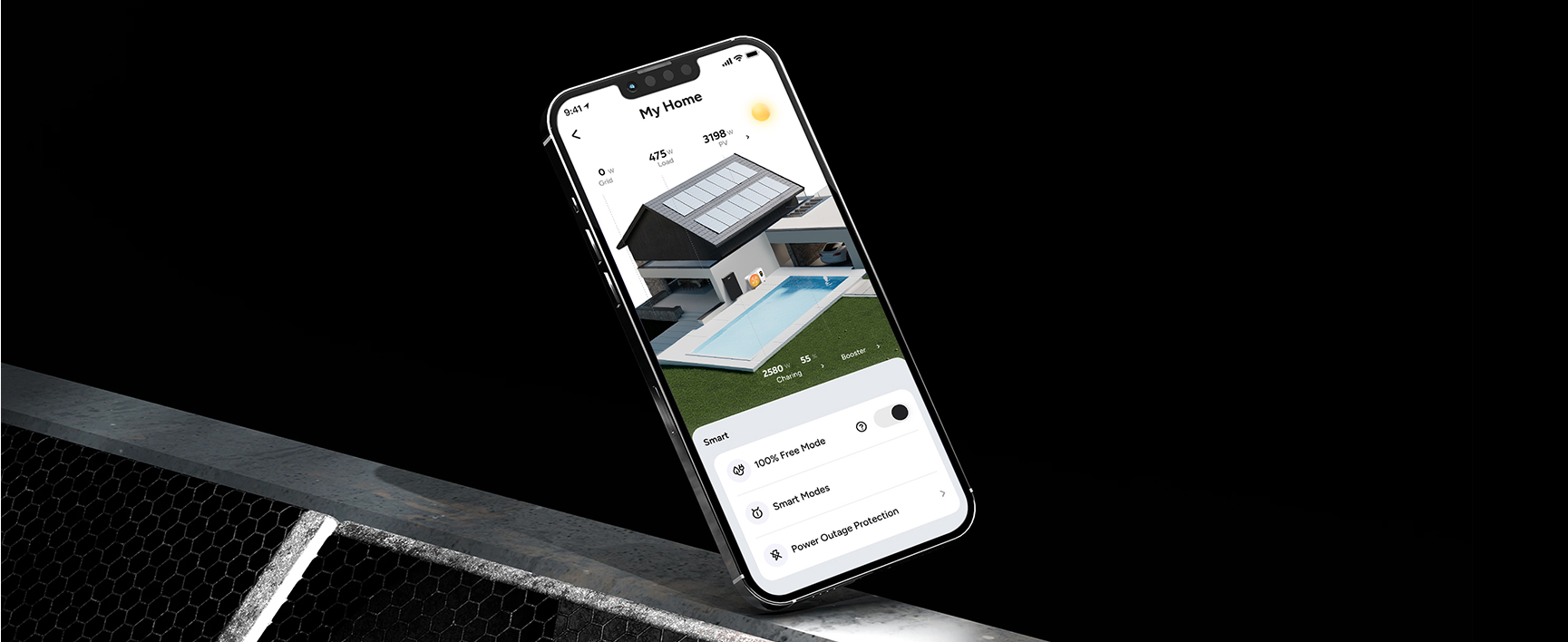

One intuitive app to monitor power, solar yield and instant energy savings.

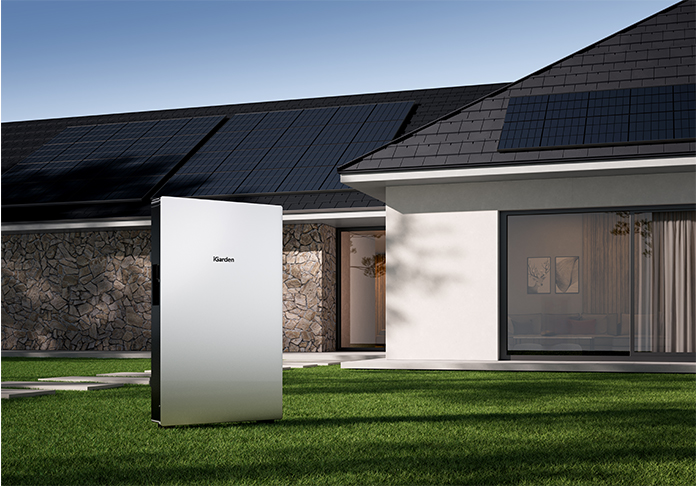

Easy & Fast installation

The average installation time < 30 minutes.

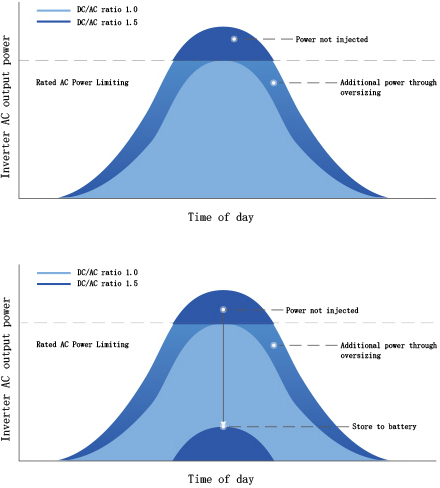

200% DC Oversizing

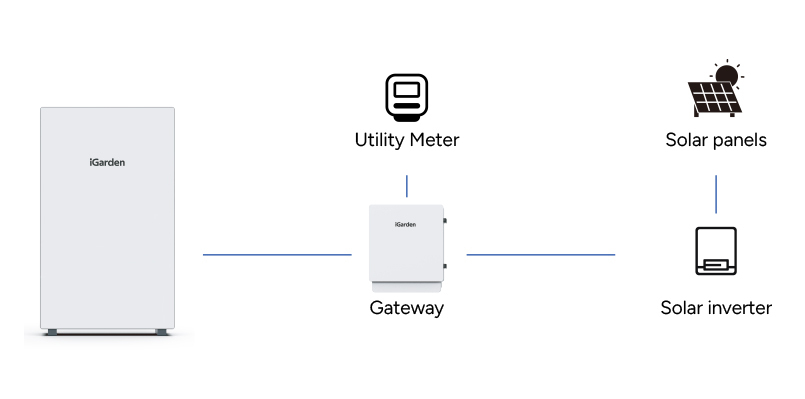

AC-Coupled Compatibility

Compatible with existing PV systems via AC coupling, and enables easy upgrade.

SYNC All-in-One Solar ESS

Model

SYNC 3.6K S1

SYNC 4.6K S1

SYNC 5K S1

SYNC 6K S1

SYNC 7.5K S1

PV Input Data

Suggested Max. PV Input Power (Wp)

11180

12100

12500

13500

15000

MPPT voltage range (V)

90 ~ 500

Grid Data

Grid Type

Single Phase

Max. Inverter Efficiency (%)

Battery Data

Battery Type

LFP (LiFePO₄)

Max. Continuous Discharging Power (W) (off-grid)

7500

Max. Continuous Discharging Power (W) (on-grid)

3680

4600

5000

6000
